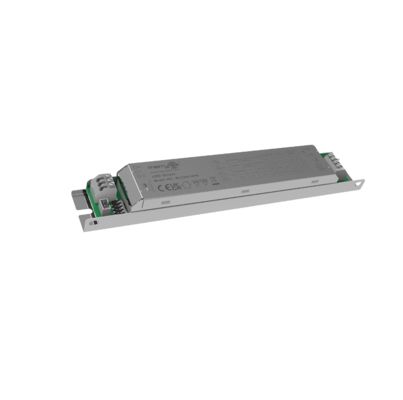

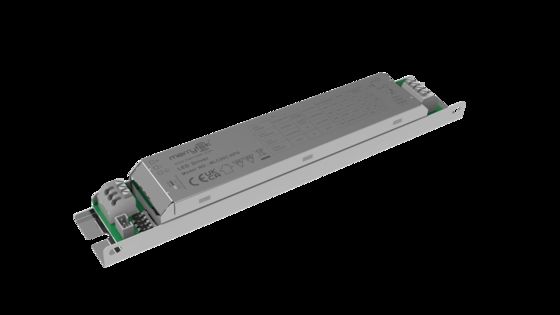

18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp

  • 18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp
  • 18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp
Lugar de origem Shenzhen, China
Marca Merrytek
Certificação CE, SAA
Número do modelo MLC20C-NPS
Quantidade de ordem mínima 100pcs
Preço Negociável
Detalhes da embalagem Bolsa de bolhas, caixa （k = a））
Tempo de entrega 1, amostra e pequeno pedido: dentro de 5 dias úteis após receber seu pagamento. 2, Ordem em massa: 3
Termos de pagamento T/T.
Habilidade da fonte 10000 PCs/mês

Contacte-me para amostras e cupons grátis.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tensão nominal 198-264VAC 50Hz/60Hz Potência em estado de espera ≤0,3W
Corrente de surto <22a (100us meia corrente) @230vac Temperatura operacional -25℃~+50℃
Certificado CE \ saa Vida Garantia de cinco anos (TA = 50 ℃@230VAC carga total)
Destacar

18.9W sensor dim LED driver

,

PWM dimming LED driver with 12V auxiliary

,

long strip lamp LED driver
Deixe um recado
Descrição de produto
18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp
Product Features
  • Metal strip non-isolated power supply; flicker-free PWM dimming power supply; with 12V auxiliary power supply; matching different sensor and wireless smart module.
  • Great performance, high efficiency, high PF value and low stand-by power; conforming to new ERP standard and complying to CE, SAA certification standards.
  • Built-in power supply is suitable for strip lamps; changing parameters by DIP switches.
Parameters
Product No. MLC20C-NPS
Input Voltage Range 198-264Vac 50Hz/60Hz
Input Current 0.1A (@230Vac full load)
Operating Voltage 220-240Vac 50Hz/60Hz
No-load Power ≤0.3W
Stand-by Power ≤0.3W
Power Factor ≥0.9 (@230Vac full load)
Working Efficiency 85% (230V Max load)
THD ≤20%(@230V ac full load)
Leak Current <0.5mA/240V
Surge Current <22A (100us half-current) @230Vac
Output Working model Constant Current
Type of load LED
Start Time ≤1S (@230Vac full load)
Ripple Current ±5% (@230Vac full load, LED full load)
Strobe Frequency Requirement Flicker free (≤5%)
No-load Output Voltage 65Vdc Max
Load Power 18.9W Max
Load Current 200mA250mA300mA350mA (set by DIP switches)
Load Output Voltage Range 30-54Vdc
Connecting Port PWM Yes (5V and 3.3V PWM signals are compatible)
Port Connecting Method 3PIN PH2.0 row needles terminal
Auxiliary Power Supply Voltage 12V±1V
Current Max100mA
Protection Requirements Operating Temperature/Humidity -25℃~+50℃
Storage Temperature/Humidity -40℃~+80℃ Humidity: 85% (Non-condensing)
Atmospheric Pressure 86~106KPa
Lightning Surge LN:1KV
Certificate Standards Safety Standards(LVD) EN61347-1,EN61347-2-13
EMC Standards EN55015,EN61547,EN61000-3-2,EN61000-3-3
Withstand Voltage 1500V AC 5mA 60S (input "L N" to output SEC+ SEC-)
Environmental requirement Compliant to RoHS
Certificate CE SAA
Output Current Accuracy ±5%
Wiring Press terminal, wire diameter: 0.5-1.0mm2
IP Rating IP20
Protection Class Class II
Installation Built-in
Dimension 195*30*21mm
Net Weight 135g±3g
Warranty Five years warranty (Ta=50℃@230Vac full load)
Product Characteristic Testing
18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp 0 18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp 1
Product Information
Dimension (units: mm)
18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp 2
Wiring
18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp 3
Function
18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp 4
Installation
18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp 5 18.9W Max Sensor Dim Led Driver, PWM Dimming With 12V Auxiliary Power Supply, For Long Strip Lamp 6
Dip Switch Setting
I rated (CC) 1 2
350mA ON ON
300mA ON -
250mA - ON
200mA - -
Initialization

After power-on, it is half bright, and after self-test, it enters the 0-10V / PWM port voltage setting brightness (suspended for full bright).

Application Notice
  1. Please use product according to specifications. Failure may occur if the product is used beyond the service conditions.
  2. Connect loads firstly before turning on the input power; otherwise, load may be damaged.
  3. After the LED drive input power is off, the output end still has residual voltage, which can be maintained for about 3 minutes.
  4. This product is a non-isolated power supply:
    • To avoid electric shock, do not operate with power on before connecting load.
    • To avoid damaging sensing head, power off is also required before connecting.
