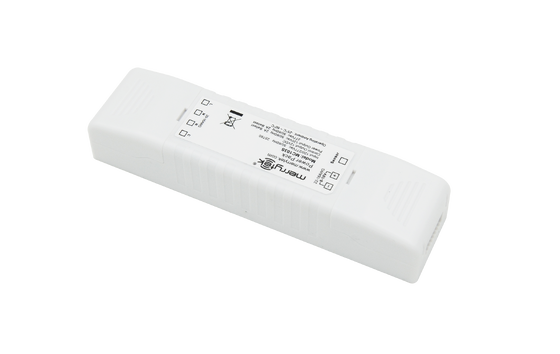

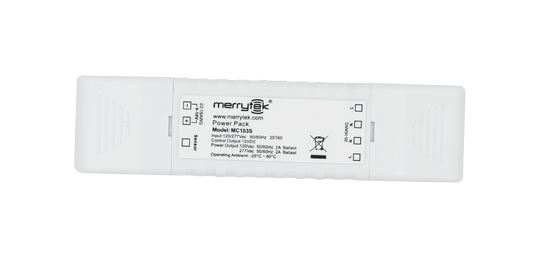

0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current

  • 0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
  • 0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
  • 0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
Lugar de origem China
Marca Merrytek
Certificação CE
Número do modelo MC103S1
Quantidade de ordem mínima 100 unidades
Preço Negociável
Detalhes da embalagem Saco de bolhas+Cartão+Cartão(K=A
Tempo de entrega 1, amostra e pequeno pedido: dentro de 5 dias úteis após receber seu pagamento. 2, Ordem em massa: 3
Termos de pagamento T/T
Habilidade da fonte 10,000pcs por mês

Contacte-me para amostras e cupons grátis.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tensão nominal 220-240VAC 50/60Hz Potência em estado de espera ≤1w
Saída Auxiliar 12VCC 100mA (Máx.) Modo de trabalho PWM/0-10V/LIGAR/DESLIGAR
Classificação IP IP20 Vida 5 anos de garantia @Ta 230V com carga total
Destacar

0-10V dimmable LED driver

,

PWM dimmable LED driver 100mA

,

DC sensor compatible LED driver
Deixe um recado
Descrição de produto
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
Product Overview

This 0-10V/PWM dimmable LED driver provides 12VDC auxiliary power for DC sensors with maximum 100mA current. Designed to work with Merrytek DC sensors, it enables 0/1-10V dimming and ON-OFF functionality.

Key Features
  • 12VDC auxiliary power supply for DC sensor, maximum 100mA current
  • 220-240VAC input
  • Compatible with Merrytek DC sensors for 0/1-10V dimming and ON-OFF functionality
Technical Specifications
Input
Rated Voltage 220-240VAC 50/60Hz
Stand-by Power ≤1W
Surge Test 1KV(L/N,EN61000-4-5)
Output
AUG Input 5PWM / 0-10VDC
AUG Output 12VDC 100mA(Max)
AC Load Capacity 400W@230Vac(Inductive Load), 800W @230Vac(Resistive Load)
AC Max. Surge Capacity 30A(@ 50% Ipeak, twidth 500us @230Vac full load & start at cold load.)
60A(@ 50% Ipeak, twidth 200us @230Vac full load & start at cold load.)
Interface
Interface 0/1-10V dimming port
Environment
Operating Temperature -25~60°C
Storage Temperature -40℃~80℃, Humidity: ≤85%(Non-condensing)
Certifications & Standards
Certificate CE
Environmental Requirement Compliant to RoHS 2.0, Reach
Safety standards EN61058-1-2, EN61058-1
EMC standards EN61058-1,EN61000-3-2,EN61000-3-3,EN62479, EN301489-1, EN55015, EN300440
IP Rating IP20
Protection Class Class II
Other Specifications
Wiring Press-in Type Terminals, wire diameter:0.75-1.5mm² & 3 pin 2.0mm fast connector
Installation Built-in
Package Bubble bag+Clapboard + Carton(K=A)
Net Weight 65±5g
Lifetime 5 years warranty @Ta 230V full load
Dimensions
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current 0
Wiring Example with Merrytek DC Sensor
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current 1
Note: This product is designed to connect to one load only.
Installation Notice
The sensor should be installed by a professional electrician. Please turn off the power before installing or wiring.
