Tri-proof Light Dimmable Sensor, Long Strip Shell, Miniature Antenna Design, No Shading

  • Tri-proof Light Dimmable Sensor, Long Strip Shell, Miniature Antenna Design, No Shading
Lugar de origem Shenzhen, China
Marca Merrytek
Certificação CE
Número do modelo MC137D C e MC137D D
Quantidade de ordem mínima 100 unidades
Preço Negociável
Detalhes da embalagem Saco de bolhas + divisória + caixa exterior (K=A)
Tempo de entrega 1, amostra e pedido pequeno: dentro de 5 dias úteis após receber seu pagamento. 2, pedido em grandes
Termos de pagamento T/T
Habilidade da fonte 10.000 unidades/mês

Contacte-me para amostras e cupons grátis.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tensão nominal 12 ± 1 VCC Tensão da ondulação < 100mVp-p
Frequência de trabalho 50,8 GHz ± 75 MHz, faixa ISM Altura de instalação 3m (5m máx.)
Temperatura de trabalho Instalado: -25~60°C Vida Garantia de 5 anos@ta
Destacar

dimmable motion sensor tri-proof light

,

long strip shell tri-proof light

,

miniature antenna sensor light
Deixe um recado
Descrição de produto

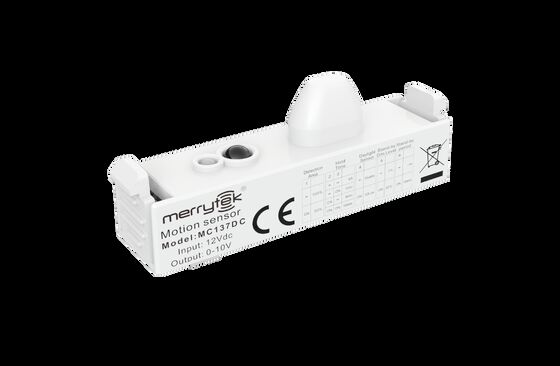

Tri-proof Light Dimmable Sensor with Miniature Antenna Design
Product Features
  • Patented Mini Coupling Dipole Antenna
  • Long strip shell with miniature antenna design, eliminating shading issues
  • Ultra-low RF power output, safe for human health
  • Remote control and DIP switch for adjusting sensing parameters
  • Low side lobe with high adaptability to metal environments
  • Unaffected by temperature, humidity, noise, airflow, dust, and light conditions
Technical Parameters
Input Specifications
Rated Voltage 12 ± 1VDC
Working Current MC137D C: 20±2mA | MC137D D: 16±2mA
Ripple Voltage < 100mVp-p
Output Specifications
Output Signal MC137D C: 0-10VDC dimming signal | MC137D D: PWM dimming signal
Daylight Sensor
Daylight Sensor Daylight priority
Sensing Parameters
Working Frequency 5.8GHz ±75MHz, ISM band
Transmit Power 1mW Max.
Detection Range (Radius) Ceiling installation 3m high: r≥4m@0.3m/s, r≥2.5m@1m/s
Horizontal installation 2m high: r≥8m@0.3m/s, r≥4m@1m/s
Installation Height 3m (5m Max)
Environmental Specifications
Working Temperature Built-in: -25~60℃
Storage Temperature -40℃…80℃, humidity ≤85% (non-condensing)
Certification Standards
Certified CE, RED (Pending)
Environmental Requirements Complies with RoHS 2.0, Reach requirements
IP Rating IP20
Other Specifications
Wiring 3pin 2.0mm terminal
Installation Requirements Built-in installation
Packaging Requirements Bubble bag + partition + outer box (K=A)
Net Weight 10±2g
Lifetime 5 Years Warranty
Model Selection
MC137D C MC137D D
0-10VDC dimming signal PWM dimming signal
Daylight priority
Function Description
Function MC137D C, MC137D D
ON/OFF Function N/A
Two-step Dimming Function N/A
Three-step Dimming Function Stand-by Period be set to "5min/10min/30min"
Daylight Harvesting N/A
Daylight Priority Stand-by Period be set to "+∞"
Technical Diagrams
Recommended for use on ceiling lights
Dimensions
Tri-proof Light Dimmable Sensor, Long Strip Shell, Miniature Antenna Design, No Shading 0
Wiring Diagram & Function Diagram
Tri-proof Light Dimmable Sensor, Long Strip Shell, Miniature Antenna Design, No Shading 1
Installation Diagram
Tri-proof Light Dimmable Sensor, Long Strip Shell, Miniature Antenna Design, No Shading 2
Installation Notice: When installing, please pay attention to the distance between the microwave antenna and the light board.
DIP Switch Settings
Function Detection Area Hold Time Daylight Sensor Stand-by Dim Level Stand-by Period
Dial Code 1 2 3 4 5 6
Ⅰ - 100% - - 5s - Disable 5Lux/15Lux/30Lux/50Lux 100-150Lux - 0% - +∞
Ⅱ ON 50% - ON 1min ON 30Lux 100Lux 200Lux ON 20% ON 15min
Ⅲ ON - 3min 150Lux 300Lux
Ⅳ ON ON 10min
Remote Control Instructions
Initialization: The sensor will turn on the light at 100% brightness for the first time, and turn it off after 10 seconds. During the initialization period, sensor is not able to detect movement.
Default Setting: Sensitivity: 100% | Hold time: 5s | Daylight Sensor: Disable | Stand-by period: 15min | Stand-by Dim Level: 0%
Application Guidelines
  • The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring, changing the setting of the dial switch, etc.
  • The sensing distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector.
  • When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling. If you use the wall installation method, please reduce the sensitivity to use or contact our company to confirm the use setting.
  • Sensor parameters may need to be reconfigured in different installation environments.
  • This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering.
  • The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters.
  • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering.
  • Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor.
  • Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product.
  • A DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV; the load current should be greater than 25mA.
  • Product specifications and parameters may be optimized without prior notice.
