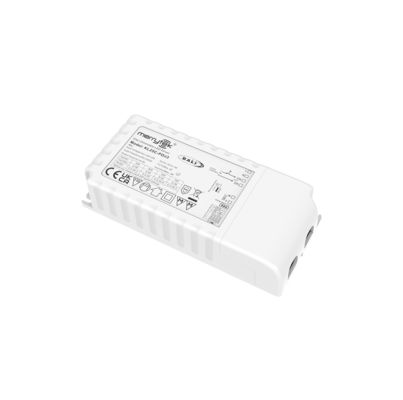

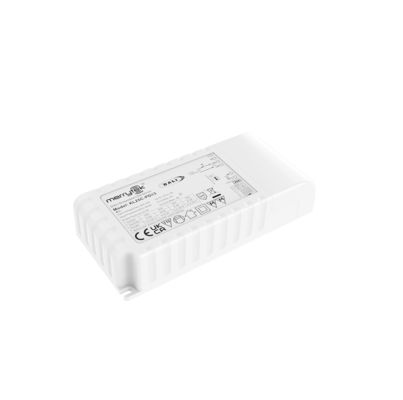

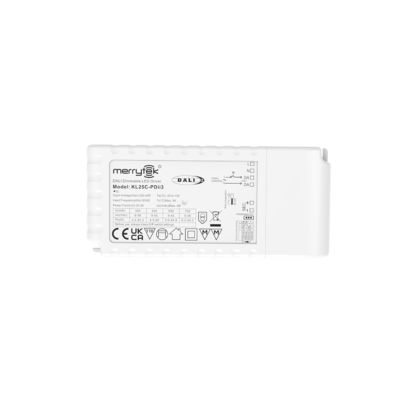

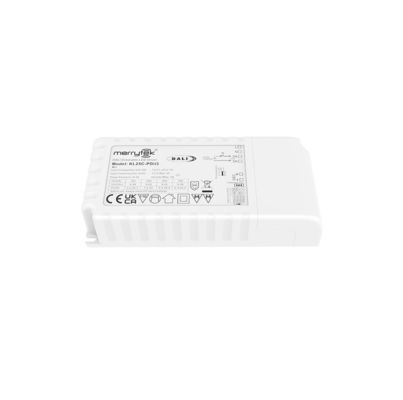

25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty

  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
  • 25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
Lugar de origem CHINA
Marca Merrytek
Certificação CE / RoHS
Número do modelo KL25C-PDii3
Quantidade de ordem mínima 100pcs
Preço Negociável
Detalhes da embalagem Embalado em sacos de bolhas, em primeiro lugar, e depois reforçado com cartão para embalagem exterio
Tempo de entrega 1, amostra e pequeno pedido: dentro de 5 dias úteis após receber seu pagamento. 2, Ordem em massa: 3
Termos de pagamento T/T ou Western Union
Habilidade da fonte 10,000pcs por mês

Contacte-me para amostras e cupons grátis.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Autorizações CE, REACH, ROHS Tensão nominal 220-240V AC 50Hz /60Hz
Nome do produto Driver LED compacto PUSH e DALI2 Potência de saída de carga total 25W máximo
Tensão de saída de carga 9-58V Modo de escurecimento DALI, PUSH, 1-10V
Temperatura de trabalho -25℃-50℃ Corrente de saída 350/500/550/700mA
Destacar

25W DALI2 LED driver

,

compact PUSH dimmable driver

,

700mA LED driver with warranty
Deixe um recado
Descrição de produto
25W CC 350mA to 700mA PUSH and DALI2 Compact LED Driver with 5 Years Warranty
Product Description

A high-performance LED driver featuring built-in DALI2 protocol, primary PUSH dimming function, and comprehensive protection features with a 5-year warranty.

Key Features
  1. Built-in DALI2 protocol with flicker-free performance across full dimming range
  2. Primary PUSH dimming with state memory function
  3. Protection features: short circuit, over temperature, over voltage
  4. Low standby power consumption ≤ 0.5W
  5. 5-year warranty for reliable performance
Technical Specifications
Input Specifications
Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Current 0.15A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by Power ≤0.5W (@230Vac)
Efficiency 86%Max (@230Vac,100% load)
Wiring Method Push terminal, wire cross section:0.75-1.0mm²
Output Specifications
Operating mode Constant Current
Load type LED
Ripple requirement Flicker value: less than 2% for the whole dimming range
Start-up time <1s (@230Vac)
No-load output voltage 68VDC Max.
Load output voltage range 9-58VDC
Full load output power 25W Max.
Load output current 350MA(9-58V)500MA(9-50V)550MA(9-45V)700MA(9-36V)
Constant current/voltage Precision Constant Current Precision ±5%
Dimensions
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 0
Wiring Diagrams
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 1
PUSH Dimming Wiring
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 2
DALI Wiring
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 3
0-10V Dimming Wiring
25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty 4
Operation Instructions

ON/OFF Operation: Short-press the PUSH switch (0.1s-1s) to turn on/off.

Dimming: Press and hold (1s-8s) to dim/brighten (2-100% range).

Memory Function: PUSH dimming maintains last brightness setting.

DALI Mode: Connect to DALI system for 0-100% dimming control.

Important Notes
  1. Always connect load before powering on to prevent damage
  2. Output maintains residual voltage for ~3 minutes after power off

Note: All parameters are tested at 230VAC input and 25°C environment unless specified.
