Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design

  • Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design
Lugar de origem Shenzhen, China
Marca Merrytek
Certificação CE
Número do modelo MC087D 99 1
Quantidade de ordem mínima 100
Preço Negociável
Detalhes da embalagem Armazém + Cartão ((K=A)
Tempo de entrega 1, Amostra e pequena ordem: Dentro de 5 dias úteis após receber o seu pagamento ((quando em estoque)
Termos de pagamento T/T
Habilidade da fonte 10000/por mês
Detalhes do produto
Faixa de tensão operacional 12 ± 1VDC Sinal de saída Sinal de escurecimento PWM / 0-10V
Altura de montagem 3 m (máximo 6 m) Temperatura do ambiente de trabalho -25~60℃
Corrente de trabalho 20 ± 3 mA Instalação embutido
pacote Armazém + Cartão ((K=A) Vida Garantia de 5 anos@ta
Destacar

PWM dimmable tri-proof light

,

motion sensor parking lot light

,

patented antenna sensor light
Deixe um recado
Descrição de produto

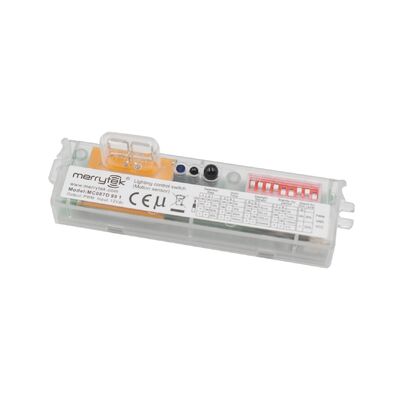

Transparent Shell PWM Dimmable Tri-proof Light Sensor for Parking Lot
Product Features
  • 12V DC input with 0-10V dimming signal or PWM dimming signal output
  • Optional three-step and two-step dimming with adjustable detection area
  • Patented antithetical dipoles antenna design with Adaptive Algorithm
  • Eliminates false triggering caused by side-lobe radiation in metal environments
  • Ideal for parking lots and similar applications
  • Remote control and DIP switch configuration for easy setup
Technical Specifications
Input Specifications
Rated Voltage12±1Vdc
Working Current20±3mA
Ripple Voltage<100mVp-p
Output Specifications
Output SignalPWM dimming signal | 0-10VDC dimming signal
Daylight Sensor
Daylight Priority ON5Lux/15Lux/30Lux/50Lux | 100Lux | 150Lux
Daylight Priority OFF150Lux | 200Lux | 300Lux
Sensor Parameters
Transmitting Power1mW Max.
Detection Area (Radius)Ceiling mounting 3m: r≥4m@0.3m/s, r≥2.5m@1m/s
Wall mounting: r≥5m@0.3m/s, r≥3m@1m/s
Mounting Height3m (6m Max)
Environmental Specifications
Working Temperature-25~60℃
Storage Temperature-40~80℃
Humidity≤85% non-condensing
Certifications & Standards
CertifiedCE
Environment RequirementsRoHS 2.0, Reach
IP RatingIP20
Other Specifications
Wiring3pin 2.0mm terminal
InstallationBuilt-in
PackageClapboard + Carton(K=A)
Lifetime5 years warranty
Model Variations
Model No.MC087D 99 1
Set modeTop dip | Bottom dip | Top dip | Bottom dip
Mounting structureClasp structure | Clasp structure | Screw installation structure | Screw installation structure
Output SignalPWM dimming signal | PWM dimming signal | PWM dimming signal | PWM dimming signal
Product ImagesTransparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 0Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 1Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 2Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 3
Functional Modes
FunctionConfiguration
ON/OFF functionStand-by Period set to "0s"
Two-step dimming functionStand-by Period set to "+∞", Daylight Sensor set to "Disable"
Three-step dimming functionStand-by Period set to "1min/10min", Daylight Sensor not set to "Disable"
Daylight priorityStand-by Period set to "+∞", Daylight Sensor set to "10Lux/30Lux/50Lux"
Product Information
Dimensions
Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 4
Function & Wiring Diagram
Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 5
Installation Guide
Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 6Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 7
Installation Note: The distance between microwave antenna and the metal plate and lamp housing must be greater than 3.2mm, and the metal plate step should not be higher than 2mm, otherwise it will affect the operation of the microwave antenna.
DIP Switch Configuration
FunctionDetection AreaHold TimeDaylight SensorStand-by PeriodStand-by Dim Level
123456789
ⅠONON100%ONON5sONON15LuxONON0sON20%
ⅡON-75%ON-30sON-50LuxON-1min-30%
Ⅲ-ON50%-ON3min-ON150Lux-ON10min
Ⅳ--25%--10min--Disable--+∞
Note: When stand-by period dial code set to +∞, it will enter daylight priority mode with half-bright shutdown.
Radiation Pattern
Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design 8
Initialization & Default Settings
Initialization Process

The light will be turned on at 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.

Default Settings
  • Sensitivity: 100%
  • Hold time: 5s
  • Daylight sensor: Disable
  • Stand-by period: 0s
  • Stand-by dim level: 20%
Application Guidelines
Important Installation Notes:
  • Installation should be performed by qualified electricians only
  • Always turn off power before installation, wiring, or changing DIP switch settings
  • Detection area varies with object speed, size, mounting height, angle, environment, and reflective materials
  • Wall mounting significantly increases detection area compared to ceiling mounting
  • Sensor parameters may require adjustment for different installation environments
  • For indoor use only - outdoor use affects waterproof performance
  • Maximum installation height: 6 meters (optimal: 3 meters)
  • Minimum distance between sensors: 3 meters
  • Avoid installation near moving objects, fans, DC motors, or air outlets
  • Microwaves cannot penetrate metal - do not install in closed metal enclosures
  • Use DC regulated power supply with stable output voltage and low ripple coefficient (<100mV)
  • Load current should be greater than 25mA
